Products

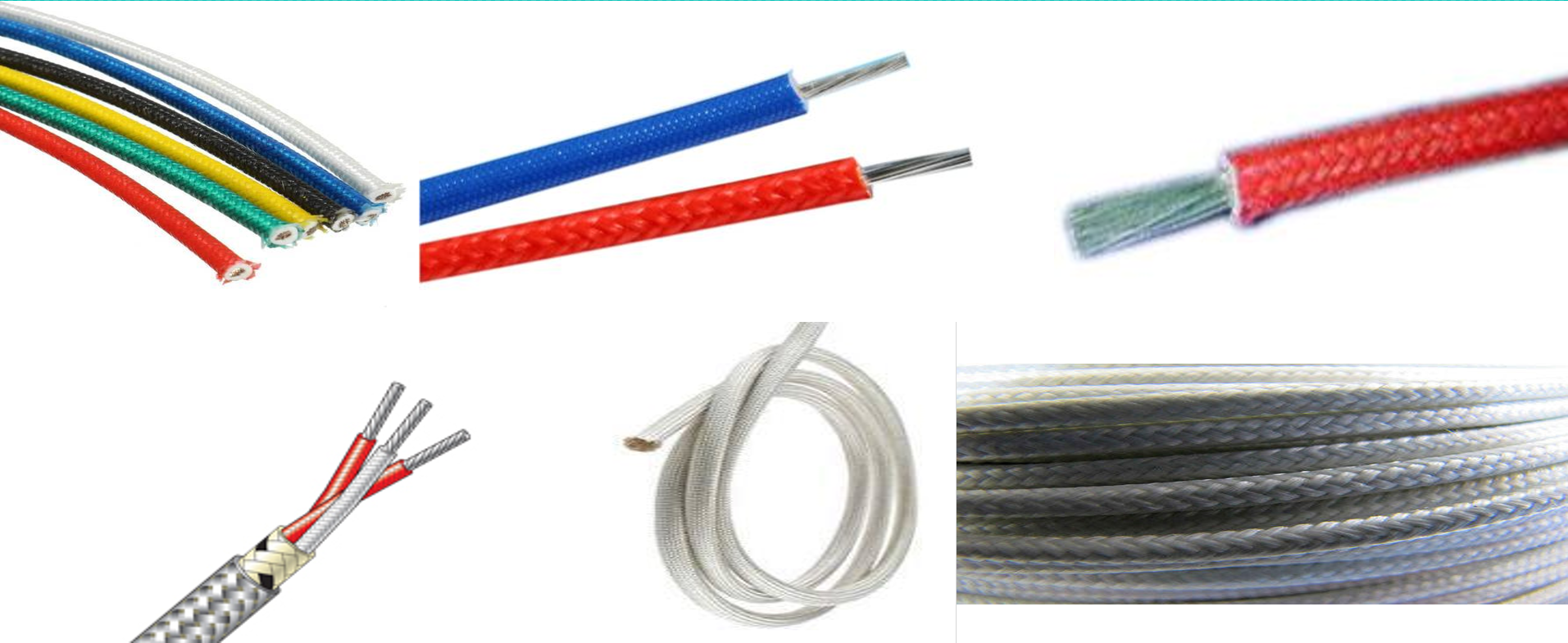

Fiberglass Wire is used for the signal transmission, controlling and measuring system of the electric apparatus and the power distribute apparatus in the field of metallurgy, power and petrochemistry, The rated voltage is up to 450/750V.
Composition:
1.Conductor: Tinned copper or bare copper
2.Insulator: Silicone rubber
3.Sheath:Fiberglass braid, silicone resin coating
Description:
1. Nominal Voltage: 300V
2. Temperature Range: -60°C to +200°C
3.Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Transparent-Yellow/ green, etc
| Extreme temperature range: | (-40oC to 105oC) can withstand the extremes of automotive environments |
| Fiberglass Wire range: | 0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands |
| High strand counts | High strand counts |
| Conductor Type | Stranded 99.99% OFC (oxygen free copper), and tin plated copper, copper coated al |
| Material | Environmentally friendly, quality, glossy material ,Tinned, Silver or Nickel plated copper etc. |
| Fiberglass Wire Colour: | Customized |
| Packing | carton packing, pallet packing , wooden / plastic reels |
We can manufacture Fiberglass Wire as per customers' requirement.
Such Fiberglass Wire are suitable for laying indoors and in the electrical cabinets, however, the cables can’t bear larger external mechanical forces. Fiberglass Wire is used for the signal transmission, controlling and measuring system of the electric apparatus.
